Kit, Wooden Vice, Wagon Vice, Lake Erie, #706174

Item Code: E2070
$ 822.26
Kit, Wooden Vice, Wagon Vice, Lake Erie, #706174
+ -

Description

LAKE ERIE

The wagon vice is a rear vice in which the runner is guided in a groove. Using the runner, the workpiece is either clamped directly or using a bench hook. The handle provided has a screw thread on both sides to allow it to be dismantled again later on. The ends of the handle are secured with a rubber ring. Maximum possible spindle travel approx. 200 mm.

Wooden screw thread vices
Unlike bench vices with a metal screw thread, the wooden screw thread utilises oil-free lubrication. This means you no longer get dirty workpieces and the screw thread does not adhere to the typical oil-wood dust mixture. Bench vices are easy to remove, as the wooden screw threads do not tend to get stuck. The wear-resistant maple screw thread travels 13 mm per rotation, which allows a fast performance. This saves time, and is particularly useful when clamping workpieces with different dimensions.

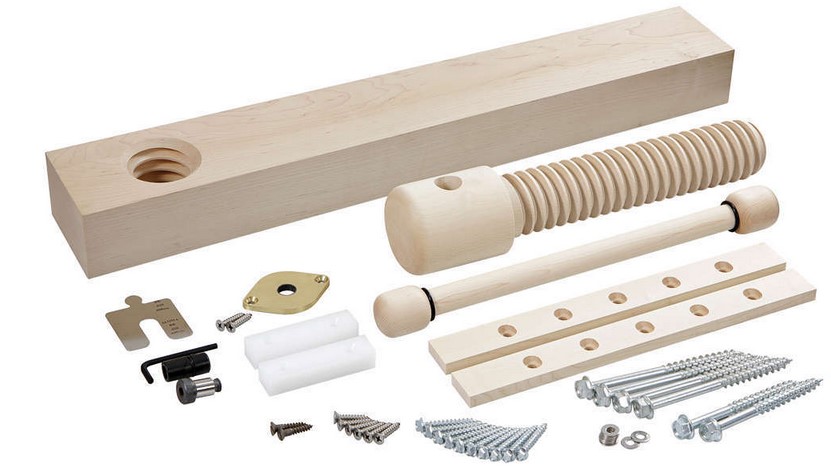

Scope of delivery

  • Threaded bolt: total length approx. 405 mm, screw thread length approx. 280 mm
  • Extended threaded connector: dimensions approx. 710 x 100 x 70 mm; extended version for easier and more versatile assembly
  • Bench vice handle: total length approx. 425 mm
  • Bronze connecting plate
  • Four runners/sliders (2 of wood, 2 of plastic)
  • Complete assembly accessories
  • Includes assembly instructions



LAKE ERIE WOODEN VICE EXAMPLES

E2070 1 A
