Clamp, Repair, Luthiers, Herdim, Over-The-Rib, 6 variants

Clamp, Repair, Luthiers, Herdim, Over-The-Rib, 6 variants
Size / Weight / Qty Price Quantity
Item Code: Y0846 122 x 30mm Price:
$ 116.48
$ 116.48
- +
Item Code: Y0847 175 x 30mm Price:
$ 116.48
$ 116.48
- +
Item Code: Y0848 245 x 30mm Price:
$ 116.48
$ 116.48
- +
Item Code: Y0849 210 x 65mm Price:
$ 149.80
$ 149.80
- +
Item Code: Y0850 300 x 65mm Price:
$ 149.80
$ 149.80
- +
Item Code: Y0851 420 x 65mm Price:
$ 149.80
$ 149.80
- +

Description

Herdim Repair Clamps
Height adjustable lower pad with silicone pad.
Some repairs as soundpost patch, opened seam and crack repair must be done on the back plate over the ribs. Clamping the cleats and patches is then, due to the rib height quite a tricky task. Using these over the rib steel clamps is an option for accurate and deliberate executing of these tasks. The lower pad with silicone cover can be used in direct contact with the varnished surface of the repaired plate without risk of harming the delicate surface. A short opening ensures a precise focused clamping action, although the clamp is drawn over the ribs. Different depths ensure the clamp can reach always exactly any wanted spot on the back of the cello resp. bass.

Made in Europe
These clamps feature all requirements for repair clamps used on fine and fragile structures:
High stiffness versus low weight - especially of the clamps with large jaw openings. These two contradictory requirements are nicely combined with this Herdim achievement. Unique strutted design fulfills these requirements the best.
The movable parts use the traditional movable brass plate and a precise brass spindle with knurled handle. The lower pad including the special silicone pad to protect the varnish surfaces is adjustable in height and thus enhances the scope of application.
  • Very stiff and low weight rapair clamp
  • Adjustable lower pad with silicone cap
  • Precise action
  • Material Steel

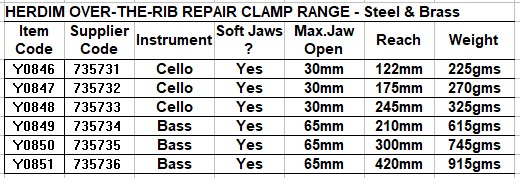

Y8846 dims

Y0846  -  #735731 Y0847 -   #735732

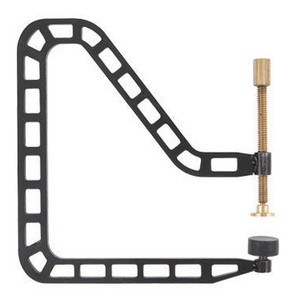

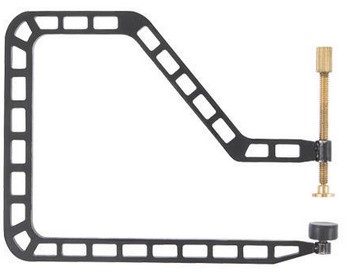

Y0846 A Y0847 2 A

Y0848   - #735733 Y0849  -  #735734

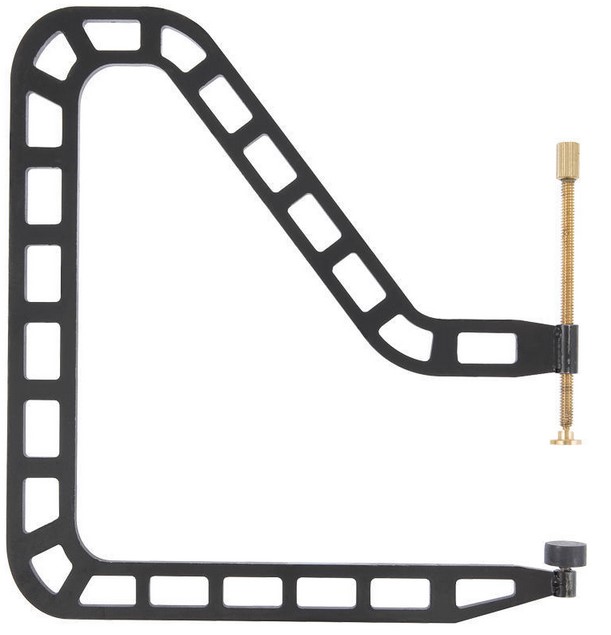

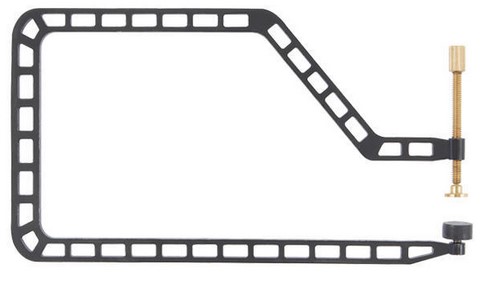

Y0849 A Y0848 A

Y0850  -  #735735 Y0851  -  #735736

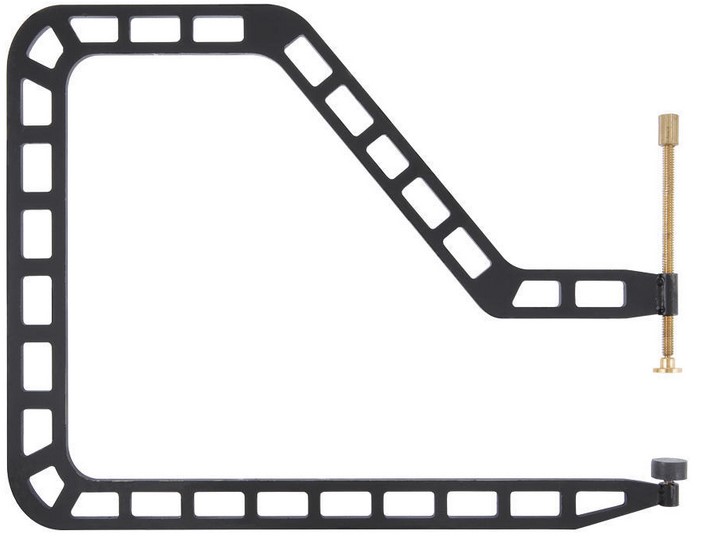

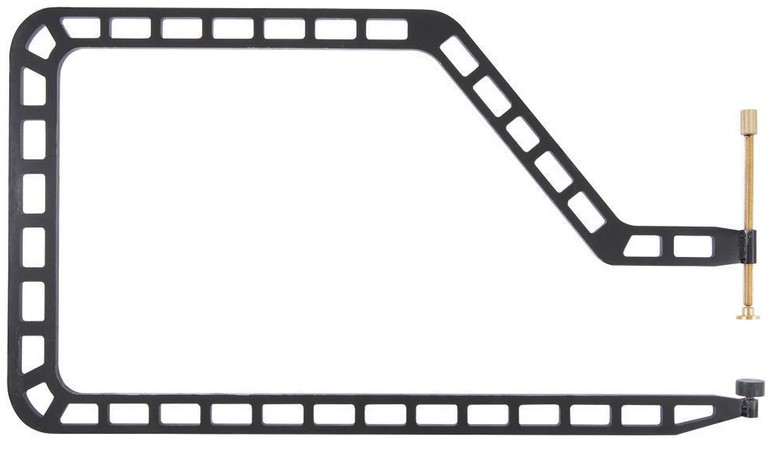

Y0850 1 A Y0851 1 A
