Clamp, Toggle, Vertical Lock , M6 Pawl, #714222

Item Code: E5075
$ 113.96

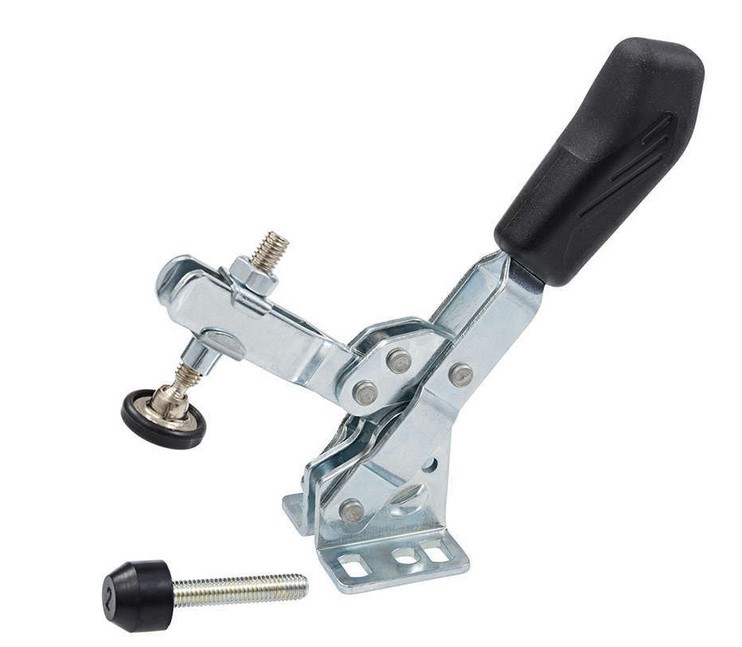

Clamp, Toggle, Vertical Lock , M6 Pawl, #714222
+ -

Description

  • Total length in unclamped condition: 167 mm
  • Total height in clamped condition: 140 mm
  • Holding force: 0.8-1.2 kN
  • Thread thrust piece: M6
Vertical lever position when clamped.
Optimum power transmission and fast workpiece fixing for a wide range of applications. The clamps can be used efficiently and are easy to operate, whether for drilling, sawing or milling applications or for fixing workpieces to the workbench when assembling, glueing or scribing. If the clamp is open, the workpiece can be easily removed. The self-locking hand lever position prevents the clamp from loosening during work.
Rustproof steel rivets running in case-hardened bearing bushes. Ergonomic, oil-resistant handle with large hand rest. The pressure screw at the end of the clamping arm is protected against loss. Completely galvanized. Comes with a pressure screw with vulcanized-on thrust piece made of oil-resistant neoprene for the protection of sensitive workpieces and a pressure plate with protective cap.
