  6. Vice, Front, Guide, sub Assembly, Dual 20mm Trunnion, Screw 410 x 30mm, Overall 560mm, Handle NOT Supplied, 8.2kg, #740221

Vice, Front, Guide, sub Assembly, Dual 20mm Trunnion, Screw 410 x 30mm, Overall 560mm, Handle NOT Supplied, 8.2kg, #740221

Have a question about this product?
Item Code: E2105
$ 449.55
Front Vice Sub Assembly Solid and robust front vice mechanism useful for making a cabinetmaking bench. To gain the ultimate racking protection for when pieces are clamped in one side of the vice consider the trunnion bracing bracket HERE. Overall
+ -
Add To Wishlist
Add To Compare

Description

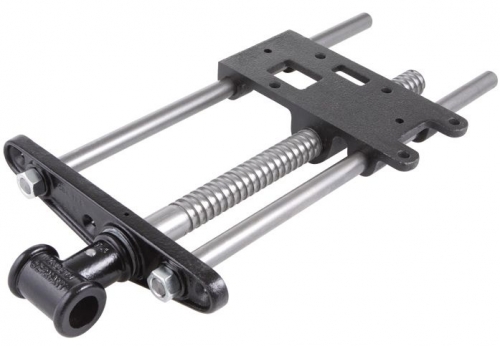

Front Vice Sub Assembly

Solid and robust front vice mechanism useful for making a cabinetmaking bench.

To gain the ultimate racking protection for when pieces are clamped in one side of the vice consider the trunnion bracing bracket HERE.

Overall screw length is 410 mm, screw diameter 30 mm, guide rod diameter 20 mm, overall length 560 mm.

Weight 8.2 kg

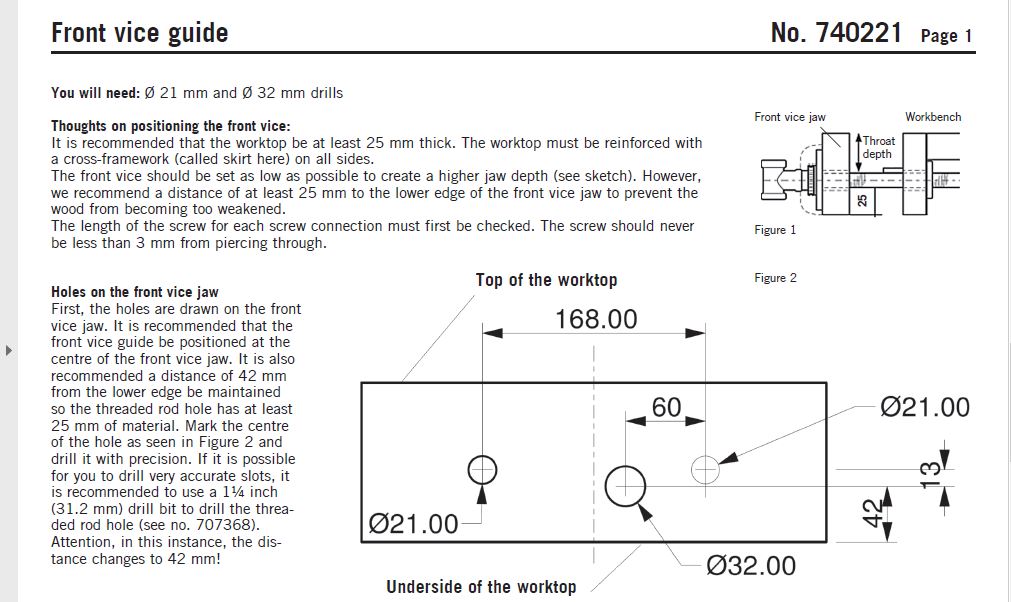

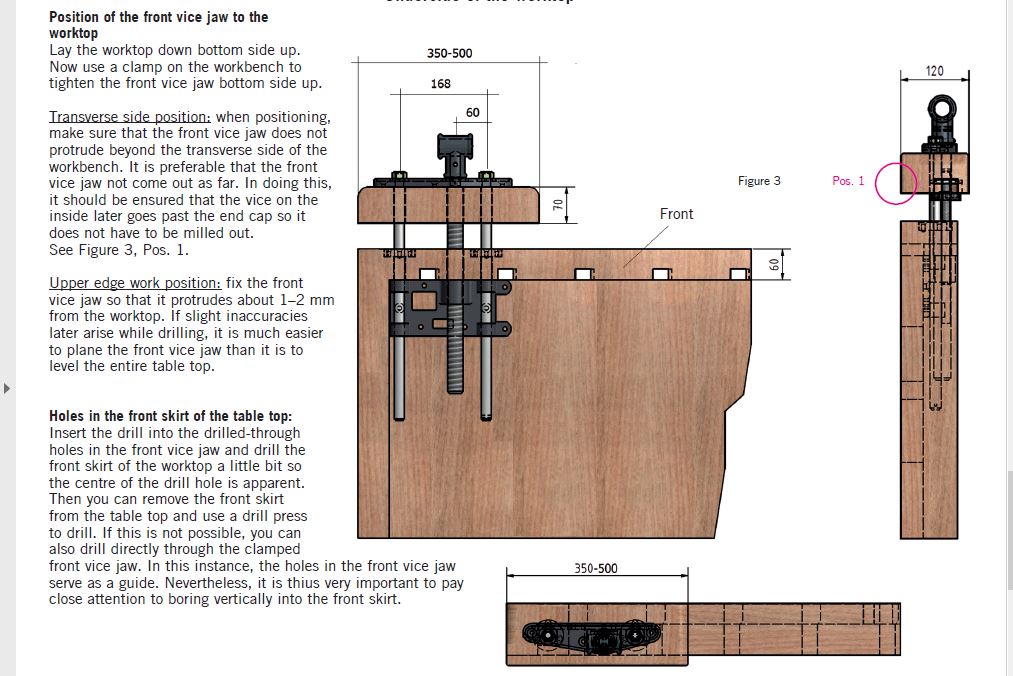

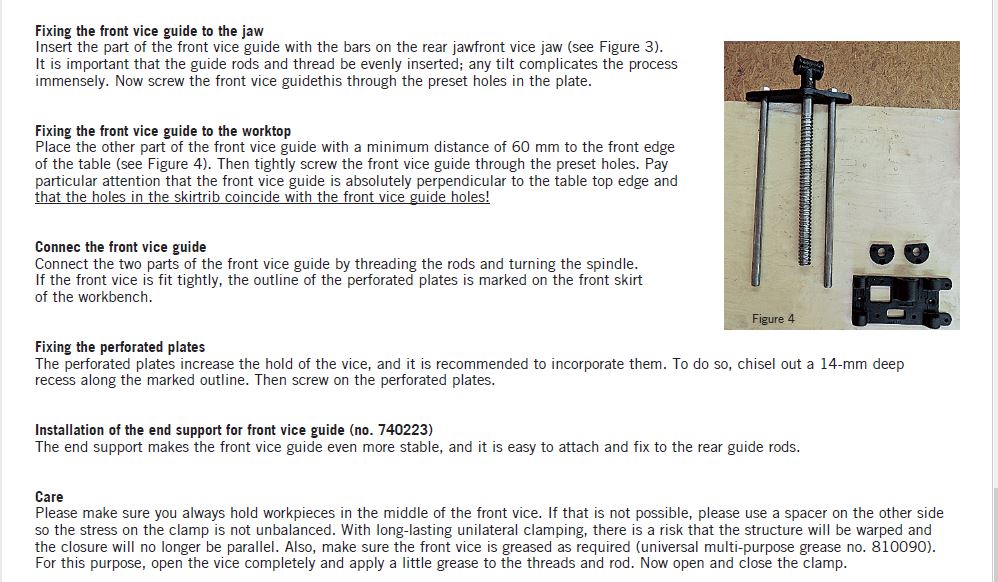

INSTALLATION NOTES

e2105 1 A

e2105 2 A

e2105 3 A
