Set, Wood Threading, Professional, Thread Box and Tap

Set, Wood Threading, Professional, Thread Box and Tap
Size / Weight / Qty Price Quantity
Item Code: E6506 13mm x 8tpi Price:
$ 467.60
$ 467.60
- +
Item Code: E6507 19mm x 6mm Price:
$ 495.61
$ 495.61
- +
Item Code: E6508 25mm x 5mm Price:
$ 691.60
$ 691.60
- +
Item Code: E6509 32mm x 4mm Price:
$ 904.40
$ 904.40
- +

Description

German Made Premium Quality  - Kit contains a thread box and tap.

This cutting set for internal and external threads is manufactured in Germany and impresses with its high-quality workmanship and sophisticated design. For making practical wooden threads with a virtually unlimited number of applications for the production of furniture, shelves, toys, nutcrackers, lamps, etc.
Threading tool kit:
  • Generously sized chip removal mouth reduces the risk of clogging and offers visibility of the cutting process
  • Wear-resistant aluminium bushing for accurate dowel rod guidance
  • Since the back of the blade lies on a thread flank, it can be quickly and precisely positioned on the flight circle and is supported during the cutting process

Tap:
  • Guiding pin for precise guidance in the drill hole
  • Square shaft drives for use with tap wrenches (not included), allows for optimum force transmission
The threading tools from 38 mm are equipped with two blades and those from 32 mm with two handles.
Due to the precise guidance of the dowel rod in the bushing, the second handle plays a decisive role for force transmission and not for precision when fitting.
The pitch indicates the threads per inch.

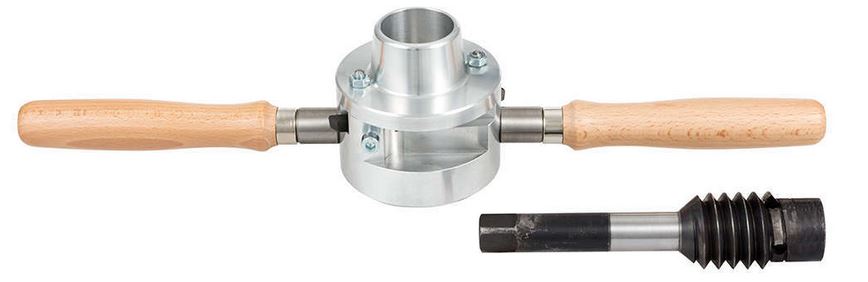

E6506 3 A

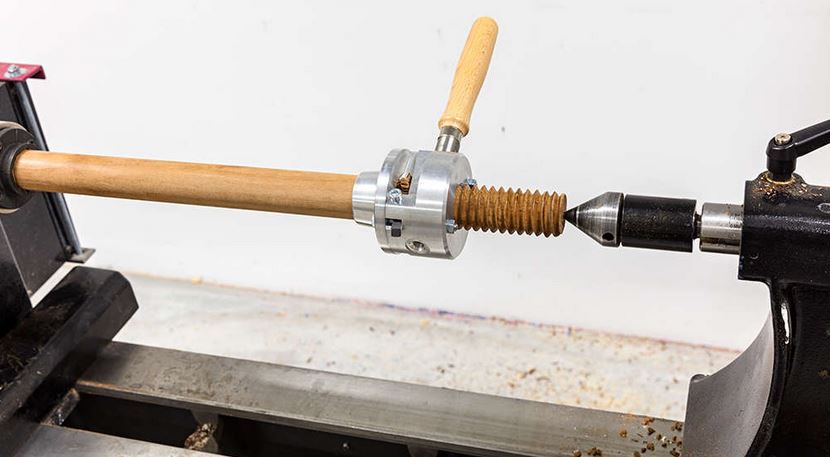

e6506 2 A


Specifications

Size/weight/qty 13mm x 8tpi
