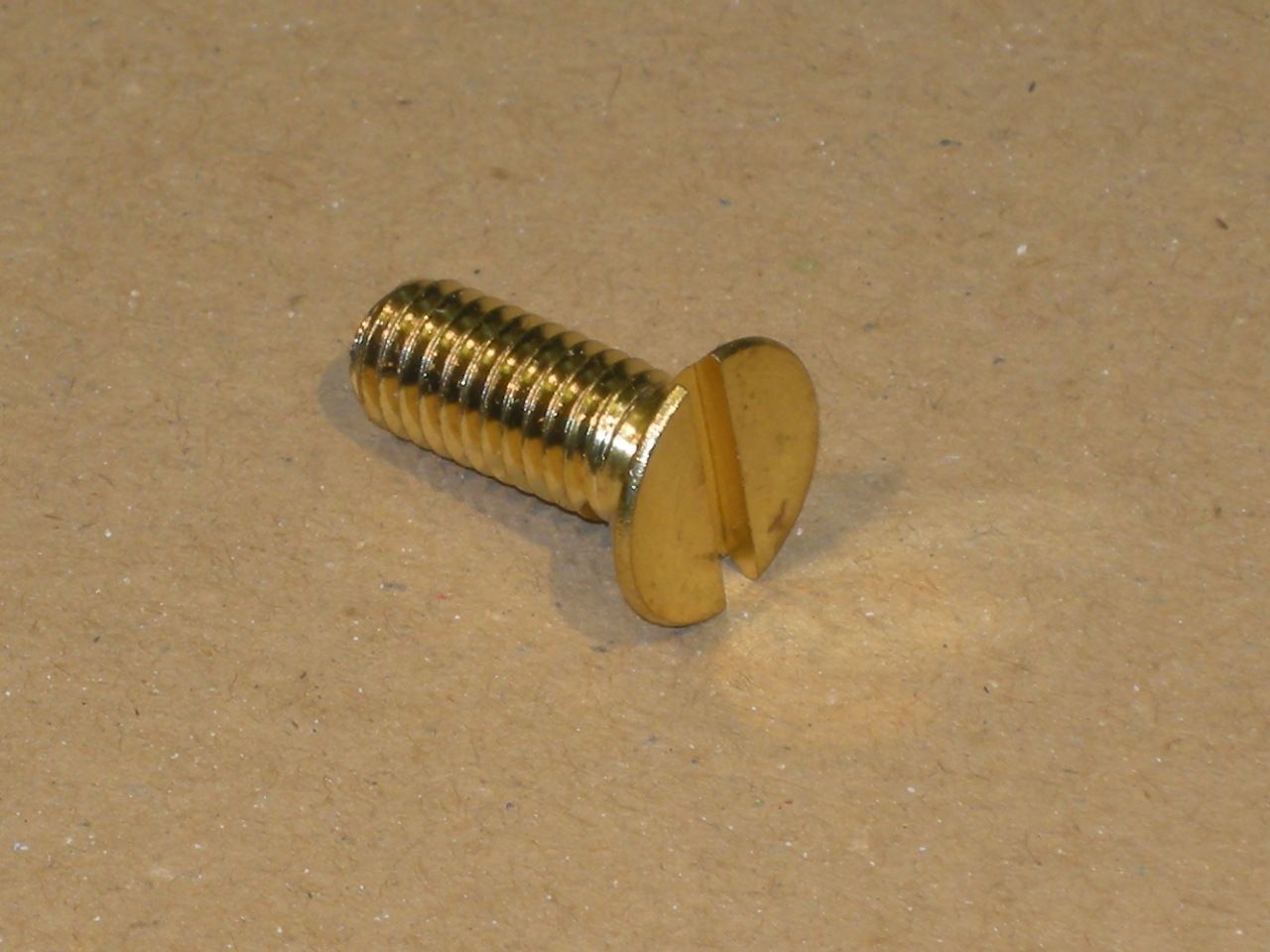

Setscrew, Solid Brass, Countersunk Slotted Head, ISO 2009, DIN 963, M3, 12 pcs

Have a question about this product?
Setscrew, Solid Brass, Countersunk Slotted Head, M3, 12 pcs
Size / Weight / Qty Price Quantity
Item Code: J2631 M3 x 5mm - 0.5 pitch Price:
$ 11.15
$ 11.15
- +
Item Code: J2634 M3 x 10mm - 0.5 pitch Price:
$ 11.61
$ 11.61
- +
Item Code: J2636 M3 x 16mm - 0.5 pitch Price:
$ 12.12
$ 12.12
- +
Item Code: J2638 M3 x 20mm - 0.5 pitch Price:
$ 12.42
$ 12.42
- +

Description

British sourced, solid brass set screw (a set screw is a full thread bolt) with standard 82 degree angle countersunk head & slotted screwdriver slot.

See HERE for a summary data sheet detailing our range of nuts, set screws & washers & the descriptive code used to define them.

See HERE for sets of 12 of all sizes including screw, nut and washer.

See below for critical dimensions & a spreadsheet list of all items with item codes for purchasing. Countersunk versions are measured & described overall, hex. & cheese heads by thread length. Please email for other quantities.



Purchasing

Search our site using these links.

Some Important Dimensions

Solid Brass Hex Nuts           Solid Brass Dome Nuts

Internal Thread  Standard  High  A/F     Internal Thread  Standard High A/F
 M3 x 0.5 DIN 934  2.2  5.4        M3 x 0.5  DIN 1587  5.8  5.4
 M4 x 0.7 DIN 934   3.0  6.8        M4 x 0.7  DIN 1587  7.8  6.8
 M5 x 0.8 DIN 934  3.8  7.9        M5 x 0.8  DIN 1587  9.7  7.9
 M6 x 1.0 DIN 934  4.8  9.8        M6 x 1.0  DIN 1587  11.7  9.8
 M8 x 1.25 DIN 934  6.2  12.7
Solid Brass Nylon Lock Nuts
           Solid Brass Washers

Internal Thread  Standard  High  A/F       Nom. Size Standard     O/D     I/D     Thick
 M3 x 0.5 DIN 985  2.2  5.4         M3 DIN 125/A     6.6     3.2     0.46
 M4 x 0.7 DIN 985  3.0  6.8         M4 DIN 125/A     8.7     4.3     0.77
 M5 x 0.8 DIN 985  3.8  7.9         M5 DIN 125/A     9.4     5.2     0.92
 M6 x 1.0 DIN 985  4.8  9.8         M6 DIN 125/A     10.8     6.4     1.4
 M8 x 1.25 DIN 985  6.2  12.7         M8 DIN 125/A     15.8     8.5     1.5

 Solid Brass Set Screws, Nuts & Washers

Note: Hex Head and Cheese Head screws are measured by the length of thread.  Countersunk screws are measured by their overall length.

Stock & Availability: Please email for sizes not listed although a minimum, pre-paid order quantity and a supply delay may apply.

Search our site using the Item Code in the following table

Fasteners SS 2







Specifications

Size/weight/qty M3 x 4mm - 0.5 pitch
