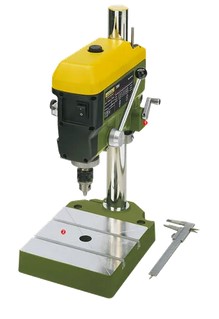

PROXXON Bench Drill Press (TBH)

Powerful, long-lasting direct current motor. Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range.

Practical drill depth indicator with adjustable limit stop. Drill spindle with precision bearing. Spindle head with 1/2" thread for the corresponding chuck (industrial quality).

Spindle with additional fit for steel collets Art No. 28200. Ideal for jig boring with the compound table KT 150.

PRODUCT SPECIFICATION

• Power: 230V
• Spindle Rotational Speed: 1,800 - 2,400 & 4,500rpm
• Sliding Sleeve Stroke: 63mm
• Height Adjustment Via Crank: 70mm
• Throat: 140mm
• Usable Table Surface: 200 x 200mm
• Column: 45 x 500mm
• Weight: 10kg
