Saw, Scroll, Multicut-2S, Hegner, Vari speed, 110260000

Have a question about this product?
Item Code: M0242
$ 3,850.00
Saw, Scroll, Multicut-2S, Hegner, Vari speed, 110260000
+ -
Add To Wishlist
Add To Compare

Description

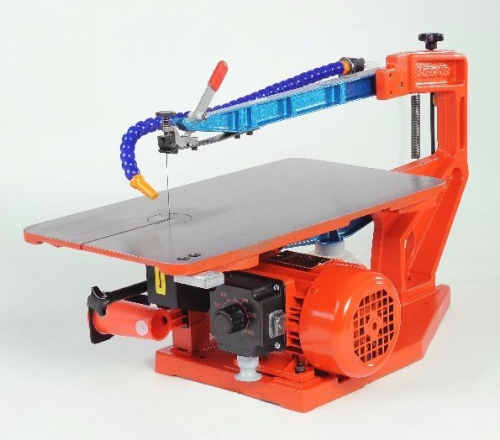

HEGNER - The 2Se comes with a deeper throat and greater depth of cut than the Multicut 1series. The arm tension release lever on the top arm at the front of the machine when coupled in use with the quick release top blade clamp greatly facilitates blade disconnect and re-connect when performing pierced internal cuts.

The 2Se comes with factory fitted variable speed control which is very useful when working metals & plastics.

See our companion Web Site devoted only to Hegner scroll saws - HERE

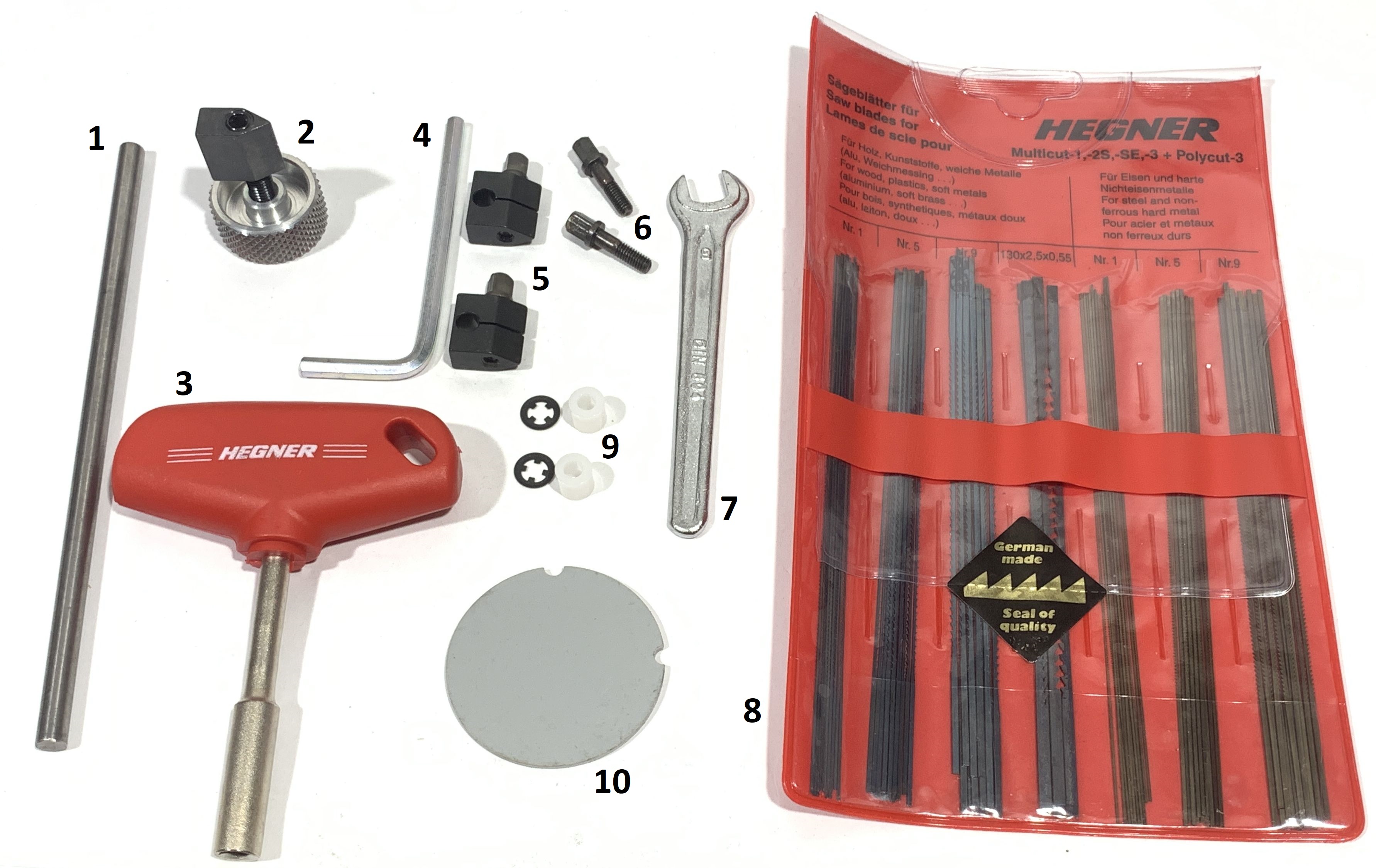

Tools, Spares & Accessories included with M2 Series

M0242 20

1 Tommy bar Holds eccentric balance at the rim.
2 Quick Release Blade Clamp Thumbwheel operated  'live' clamp.
3 Blade clamp key Tightens the square head screws #5 & #6.
4 Allen key 4mm AF
5 Standard 0.7mm blade clamps Useable top & bottom - 'dead' clamps.
6 Clamp screws Spares
7 Spanner 9mm Open End
8 Blade selection 7 patterns
9 Pinch Rollers Spares
10 Zero Clearance Table Throat Plate Plastic - allows personalised table plate



SPECIFICATIONS

Note: The 2SE version has an identical spec with the exception that it has a machined cast iron table.

Models 2S and 2Se
Shipping Weight 22 kg
Machine Weight 19kg
Warranty 3 years
Length 610mm (24 inches)
Width 280mm (11 inches)
Throat 460mm (18 inches)
Max Cut 65mm (2 1/2 inches)
Blades Pinless 130 mm (5 inch)
Table 2S & 2Se Machined alloy
Table size 435mm x 230mm (17" x 9")
Table tilt

-12 ~ +45 degrees
Quick Arm Tension Release Yes at Front
Quick Blade Clamp Yes

Indicative Noise At Idle

 64.1 dB(A)
Indicative Noise Machining

74.5 dB(A)
Dust management Dual - bellows blower & vacuum port
Stroke Two options - 12 & 19mm
Ex Factory Stroke Setting 19mm
Speed Fixed (Model 2S) 1400 spm
Speed variable (Model 2Se) 400~1400 spm
Motor

100Watts (230v, 50Hz, AC)
Motor Type (Model 2S) TEFC Cap start continuous duty
Motor Type (Model 2Se) TEFC VS drive continuous duty
Motor rating Continuous
Indicative Capacities
Soft Wood 65mm
Hard Wood 50mm
Alloy, Copper 5mm
Brass, Silver 10mm
Iron soft steel 8mm
Hard plastics, perspex 15mm
Polyurethane foam

65mm
